Axon Taser X26P

Posted: 12/23/2025

Axon Taser X26P

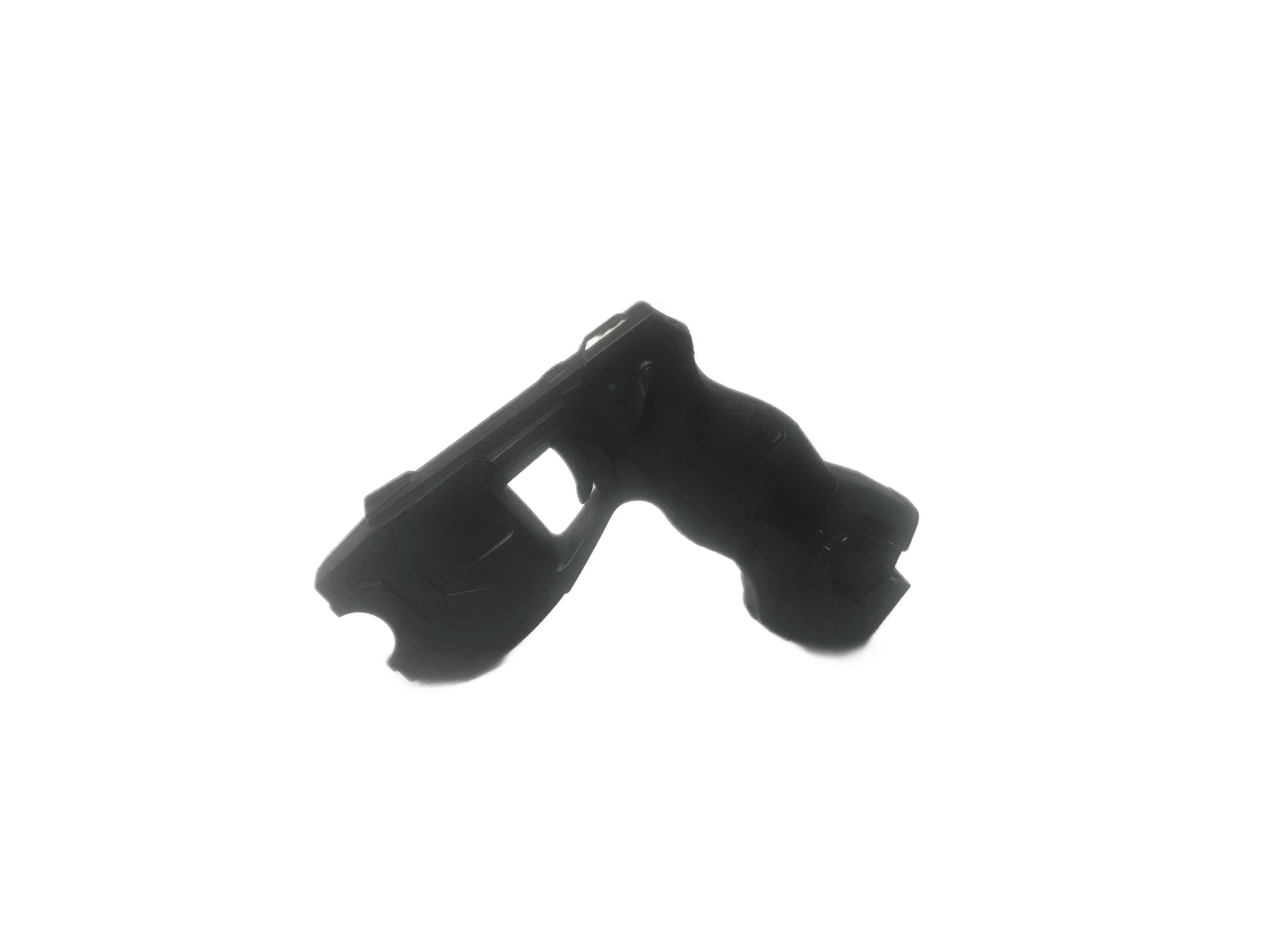

The Taser X26P is a digital, single-shot Conducted Energy Weapon (CEW), featuring an all-digital platform, enhanced weatherproofing (IPX2), and Trilogy Logs for detailed event data, powered by a replaceable Performance Power Magazine (PPM) for longer life than its predecessor (X26), and uses standard cartridges with an optional front-loaded XPPM for quick reloading, offering EMD technology (Electro-Muscular Disruption) for temporary incapacitation at ranges like 15 feet.

  • Type: Single-shot, smart weapon
  • Technology: Precision Shaped Pulse (PSP), Electro-Muscular Disruption (EMD)
  • Output: High voltage (around 50,000V), low amperage (around 2.1mA)
  • Range: Typically 15 feet (with standard cartridges)
  • Power: Performance Power Magazine (PPM) with long life
  • Data Logging: Trilogy Logs (event time, output, performance)
  • Weather Resistance: IPX2 rated (rain/humidity)
  • Housing: High-impact polymer
  • Activation: Ambidextrous safety switch
  • Weight (with PPM & Cartridge): Around 12.4 oz (0.77 lbs)
  • Dimensions (L x W x H w/ Cartridge): ~7.3″ x 1.3″ x 3.2″
  • All-Digital Platform: Solid-state electronics for reliability.
  • Charge Metering: Optimizes current delivery.
  • Extended Power: PPM provides many more 5-second discharges than older models.

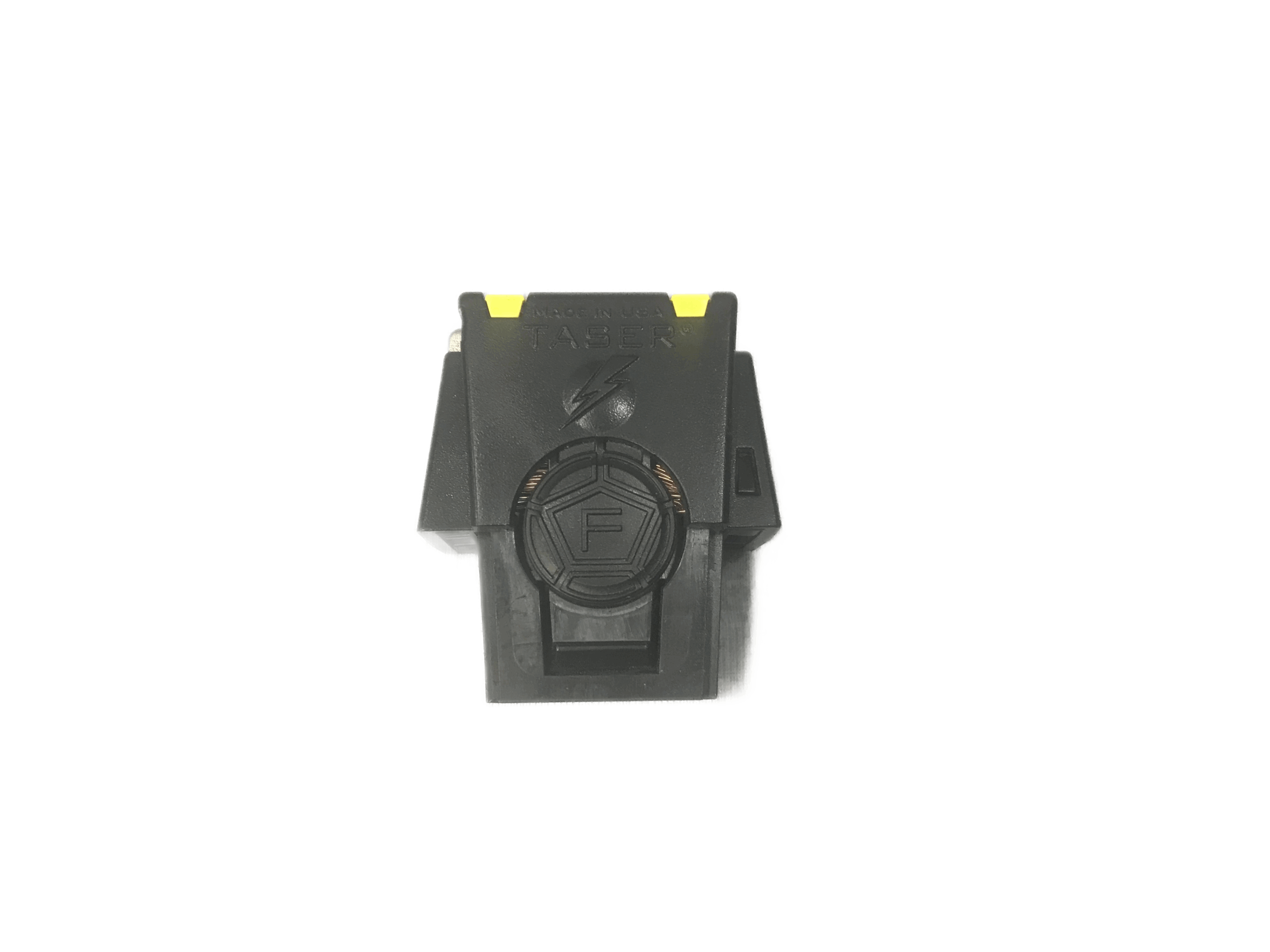

  • Cartridge System: Uses standard cartridges; XPPM option allows for an extra cartridge to be stored forward for faster access.
  • LED Light: Integrated white LED for illumination.
  • Self-Diagnostics: Internal system checks.
