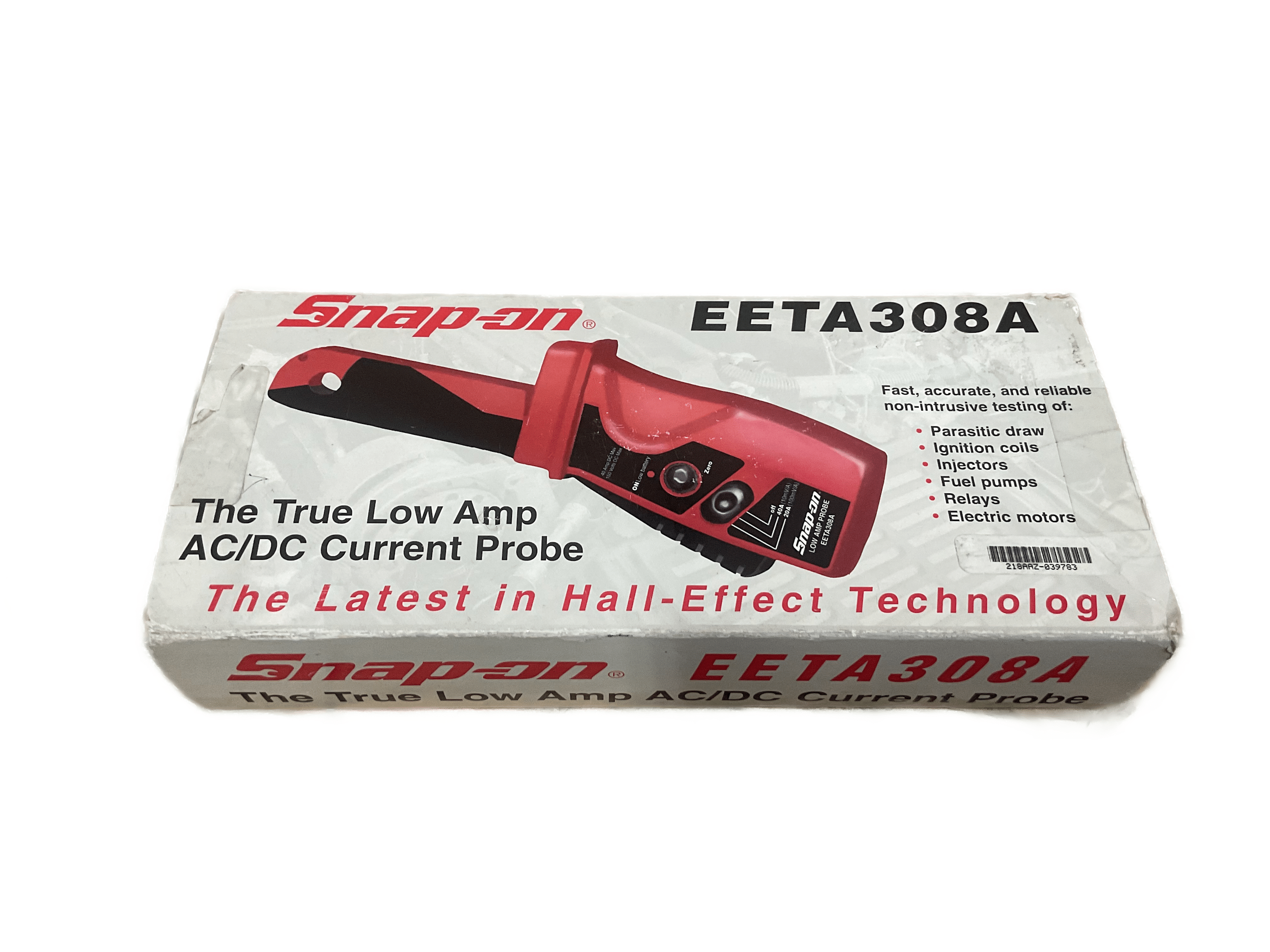

Snap-On EETA308A Clamp Probe
The Snap-On EETA308A is a low-amp, Hall Effect current probe for non-intrusive testing, featuring 20A/60A AC/DC ranges, ±1mA resolution, 100mV/10mV per Amp sensitivity, up to 12mm conductor size, auto-zero, and 9V battery power, used for checking parasitic draw, injectors, etc., with directional flow indication.
Key Specifications:
- Current Ranges: 20A / 60A (AC Peak/DC).
- Sensitivity: 100mV/A (20A range) & 10mV/A (60A range).
- Accuracy: ±1% (20A) / ±2% (60A).
- Resolution: ±1mA (20A) / ±10mA (60A).
- Max Conductor Size: 12mm (approx. 1/2 inch).
- Technology: Hall Effect (for non-intrusive, accurate readings).
- Power: Internally powered by one 9V battery (PP3/MN1604).
- Features: Auto-zeroing, directional arrow (positive reading in arrow direction).
- Output: 4mm safety plugs.
- Frequency: DC to 50kHz (-3dB).
